조명

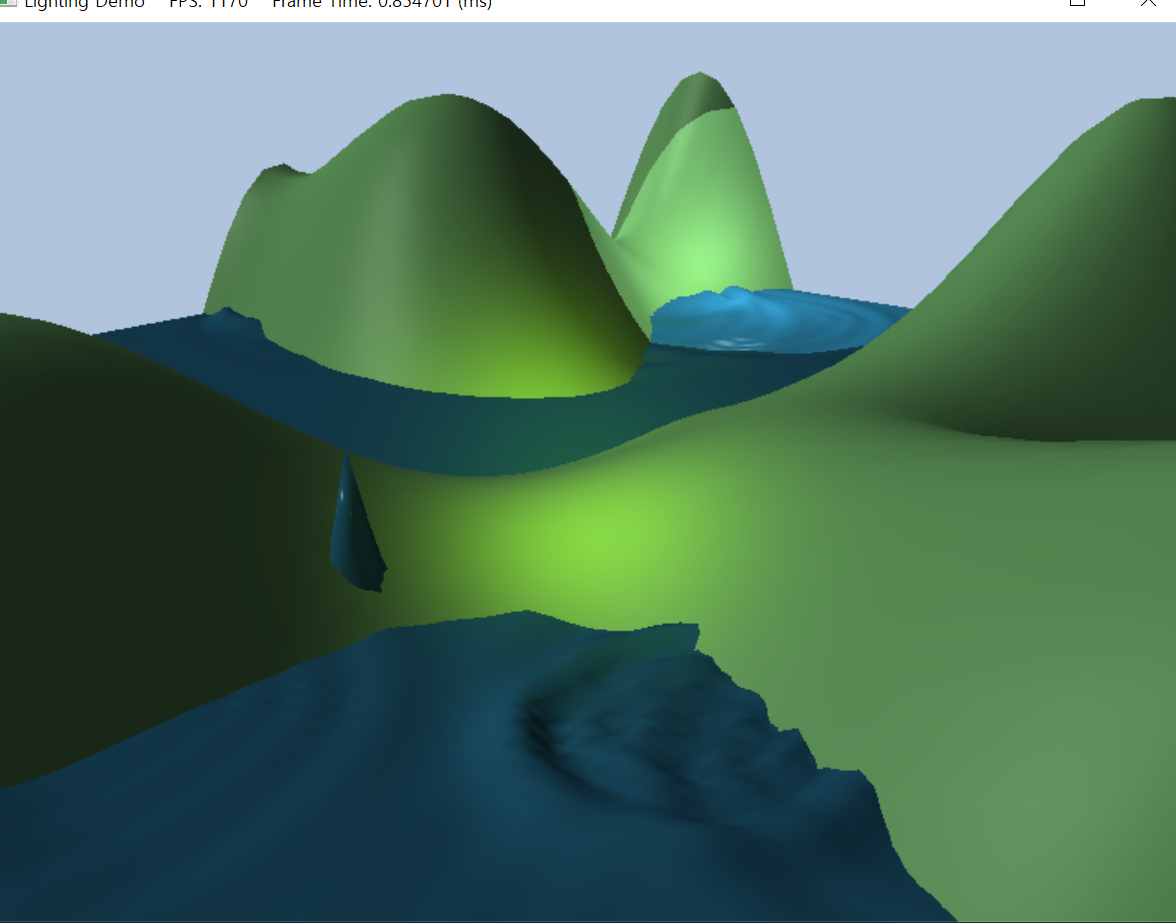

물방울책에서 제공하는 조명 예제의 완성본은 다음과 같다.
스포트라이트와 가운데 포인트라이트 그리고 나머지는 웨이브 오브젝트에 텍스처를 입혀 구현했다.
주목해야하는 점은 조명이다.
스포트라이트와 포인트라이트는 일반 빛 조명과 크게 다르지 않다. 단지 여러 세부 옵션이 추가된 것이다.
#pragma once
struct DirectionalLight
{
DirectionalLight() { ZeroMemory(this, sizeof(this)); }
XMFLOAT4 Ambient;
XMFLOAT4 Diffuse;
XMFLOAT4 Specular;
XMFLOAT3 Direction;
float Pad; // Pad the last float so we can set an array of lights if we wanted.
};
struct PointLight
{
PointLight() { ZeroMemory(this, sizeof(this)); }
XMFLOAT4 Ambient;
XMFLOAT4 Diffuse;
XMFLOAT4 Specular;
// Packed into 4D vector: (Position, Range)
XMFLOAT3 Position;
float Range;
// Packed into 4D vector: (A0, A1, A2, Pad)
XMFLOAT3 Att;
float Pad; // Pad the last float so we can set an array of lights if we wanted.
};
struct SpotLight
{
SpotLight() { ZeroMemory(this, sizeof(this)); }
XMFLOAT4 Ambient;
XMFLOAT4 Diffuse;
XMFLOAT4 Specular;
// Packed into 4D vector: (Position, Range)
XMFLOAT3 Position;
float Range;
// Packed into 4D vector: (Direction, Spot)
XMFLOAT3 Direction;
float Spot;
// Packed into 4D vector: (Att, Pad)
XMFLOAT3 Att;
float Pad; // Pad the last float so we can set an array of lights if we wanted.
};
struct Material
{
Material() { ZeroMemory(this, sizeof(this)); }
XMFLOAT4 Ambient;
XMFLOAT4 Diffuse;
XMFLOAT4 Specular; // w = SpecPower
XMFLOAT4 Reflect;
};Directional를 기준으로 설명하자면 빛이 직선으로 다가와 일부는 흡수되고 일부는 반사될 것이다. 그리고 그러한 빛이 우리 눈에 특성 색상코드를 자극하면 그 색상으로 보이는 것이다. 결국에 물체의 색상을 정해주는 것이 빛인 셈이다.
그리고 그런 것들은 쉐이더에서 대부분 정하게 된다. ambient와 diffuse, 그리고 specular를 통해 정하게 된다.
물체마다 고유의 material이 존재한다. 이는 물체의 재질을 의미하는데, 쉐이더에 넘겨주는 인자라고 보면 된다. 이때, amibent diffuse specular를 얼만큼 흡수할 지를 넘겨줄 수 있다.
struct DirectionalLight
{
float4 Ambient;
float4 Diffuse;
float4 Specular;
float3 Direction;
float pad;
};
struct PointLight
{
float4 Ambient;
float4 Diffuse;
float4 Specular;
float3 Position;
float Range;
float3 Att;
float pad;
};
struct SpotLight
{
float4 Ambient;
float4 Diffuse;
float4 Specular;
float3 Position;
float Range;
float3 Direction;
float Spot;
float3 Att;
float pad;
};
struct Material
{
float4 Ambient;
float4 Diffuse;
float4 Specular; // w = SpecPower
float4 Reflect;
};
//---------------------------------------------------------------------------------------
// Computes the ambient, diffuse, and specular terms in the lighting equation
// from a directional light. We need to output the terms separately because
// later we will modify the individual terms.
//---------------------------------------------------------------------------------------
void ComputeDirectionalLight(Material mat, DirectionalLight L,
float3 normal, float3 toEye,
out float4 ambient,
out float4 diffuse,
out float4 spec)
{
// Initialize outputs.
ambient = float4(0.0f, 0.0f, 0.0f, 0.0f);
diffuse = float4(0.0f, 0.0f, 0.0f, 0.0f);
spec = float4(0.0f, 0.0f, 0.0f, 0.0f);
// The light vector aims opposite the direction the light rays travel.
float3 lightVec = -L.Direction;
// Add ambient term.
ambient = mat.Ambient * L.Ambient;
// Add diffuse and specular term, provided the surface is in
// the line of site of the light.
float diffuseFactor = dot(lightVec, normal);
// Flatten to avoid dynamic branching.
[flatten]
if( diffuseFactor > 0.0f )
{
float3 v = reflect(-lightVec, normal);
float specFactor = pow(max(dot(v, toEye), 0.0f), mat.Specular.w);
diffuse = diffuseFactor * mat.Diffuse * L.Diffuse;
spec = specFactor * mat.Specular * L.Specular;
}
}
//---------------------------------------------------------------------------------------
// Computes the ambient, diffuse, and specular terms in the lighting equation
// from a point light. We need to output the terms separately because
// later we will modify the individual terms.
//---------------------------------------------------------------------------------------
void ComputePointLight(Material mat, PointLight L, float3 pos, float3 normal, float3 toEye,
out float4 ambient, out float4 diffuse, out float4 spec)
{
// Initialize outputs.
ambient = float4(0.0f, 0.0f, 0.0f, 0.0f);
diffuse = float4(0.0f, 0.0f, 0.0f, 0.0f);
spec = float4(0.0f, 0.0f, 0.0f, 0.0f);
// The vector from the surface to the light.
float3 lightVec = L.Position - pos;
// The distance from surface to light.
float d = length(lightVec);
// Range test.
if( d > L.Range )
return;
// Normalize the light vector.
lightVec /= d;
// Ambient term.
ambient = mat.Ambient * L.Ambient;
// Add diffuse and specular term, provided the surface is in
// the line of site of the light.
float diffuseFactor = dot(lightVec, normal);
// Flatten to avoid dynamic branching.
[flatten]
if( diffuseFactor > 0.0f )
{
float3 v = reflect(-lightVec, normal);
float specFactor = pow(max(dot(v, toEye), 0.0f), mat.Specular.w);
diffuse = diffuseFactor * mat.Diffuse * L.Diffuse;
spec = specFactor * mat.Specular * L.Specular;
}
// Attenuate
float att = 1.0f / dot(L.Att, float3(1.0f, d, d*d));
diffuse *= att;
spec *= att;
}
//---------------------------------------------------------------------------------------
// Computes the ambient, diffuse, and specular terms in the lighting equation
// from a spotlight. We need to output the terms separately because
// later we will modify the individual terms.
//---------------------------------------------------------------------------------------
void ComputeSpotLight(Material mat, SpotLight L, float3 pos, float3 normal, float3 toEye,
out float4 ambient, out float4 diffuse, out float4 spec)
{
// Initialize outputs.
ambient = float4(0.0f, 0.0f, 0.0f, 0.0f);
diffuse = float4(0.0f, 0.0f, 0.0f, 0.0f);
spec = float4(0.0f, 0.0f, 0.0f, 0.0f);
// The vector from the surface to the light.
float3 lightVec = L.Position - pos;
// The distance from surface to light.
float d = length(lightVec);
// Range test.
if( d > L.Range )
return;
// Normalize the light vector.
lightVec /= d;
// Ambient term.
ambient = mat.Ambient * L.Ambient;
// Add diffuse and specular term, provided the surface is in
// the line of site of the light.
float diffuseFactor = dot(lightVec, normal);
// Flatten to avoid dynamic branching.
[flatten]
if( diffuseFactor > 0.0f )
{
float3 v = reflect(-lightVec, normal);
float specFactor = pow(max(dot(v, toEye), 0.0f), mat.Specular.w);
diffuse = diffuseFactor * mat.Diffuse * L.Diffuse;
spec = specFactor * mat.Specular * L.Specular;
}
// Scale by spotlight factor and attenuate.
float spot = pow(max(dot(-lightVec, L.Direction), 0.0f), L.Spot);
// Scale by spotlight factor and attenuate.
float att = spot / dot(L.Att, float3(1.0f, d, d*d));
ambient *= spot;
diffuse *= att;
spec *= att;
}텍스처
어떠한 물체가 있는데 그 물체의 픽셀 단위로 빛을 전부 다 표현하는 것은 말이 안되는 일이다. 그렇기 때문이 이를 정리해서 텍스처라는 파일을 만들고 이를 쉐이더에 넘겨주고 계산하는 것이 목표이다. 이를 텍스터 맵핑이라 한다.
텍스처를 입힐 때, 우리가 입히는 오브젝트와 텍스처의 크기가 동일하면 너무 좋겠지만 현실은 그렇지 않기 때문에, uv 맵핑을 해주어 텍스처의 상대 위치를 지정해 주어야 한다.
void GeometryGenerator::CreateBox(float width, float height, float depth, MeshData& meshData)
{
//
// Create the vertices.
//
Vertex v[24];
float w2 = 0.5f*width;
float h2 = 0.5f*height;
float d2 = 0.5f*depth;
// Fill in the front face vertex data.
v[0] = Vertex(-w2, -h2, -d2, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f);
v[1] = Vertex(-w2, +h2, -d2, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f);
v[2] = Vertex(+w2, +h2, -d2, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f);
v[3] = Vertex(+w2, -h2, -d2, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f);
// Fill in the back face vertex data.
v[4] = Vertex(-w2, -h2, +d2, 0.0f, 0.0f, 1.0f, -1.0f, 0.0f, 0.0f, 1.0f, 1.0f);
v[5] = Vertex(+w2, -h2, +d2, 0.0f, 0.0f, 1.0f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f);
v[6] = Vertex(+w2, +h2, +d2, 0.0f, 0.0f, 1.0f, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f);
v[7] = Vertex(-w2, +h2, +d2, 0.0f, 0.0f, 1.0f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f);
// Fill in the top face vertex data.
v[8] = Vertex(-w2, +h2, -d2, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f);
v[9] = Vertex(-w2, +h2, +d2, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f);
v[10] = Vertex(+w2, +h2, +d2, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f);
v[11] = Vertex(+w2, +h2, -d2, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f);
// Fill in the bottom face vertex data.
v[12] = Vertex(-w2, -h2, -d2, 0.0f, -1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f, 1.0f);
v[13] = Vertex(+w2, -h2, -d2, 0.0f, -1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f);
v[14] = Vertex(+w2, -h2, +d2, 0.0f, -1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f);
v[15] = Vertex(-w2, -h2, +d2, 0.0f, -1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f);
// Fill in the left face vertex data.
v[16] = Vertex(-w2, -h2, +d2, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f, -1.0f, 0.0f, 1.0f);
v[17] = Vertex(-w2, +h2, +d2, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f);
v[18] = Vertex(-w2, +h2, -d2, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f);
v[19] = Vertex(-w2, -h2, -d2, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f, -1.0f, 1.0f, 1.0f);
// Fill in the right face vertex data.
v[20] = Vertex(+w2, -h2, -d2, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 1.0f);
v[21] = Vertex(+w2, +h2, -d2, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f);
v[22] = Vertex(+w2, +h2, +d2, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 1.0f, 0.0f);
v[23] = Vertex(+w2, -h2, +d2, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f);
meshData.vertices.assign(&v[0], &v[24]);
//
// Create the indices.
//
uint32 i[36];
// Fill in the front face index data
i[0] = 0; i[1] = 1; i[2] = 2;
i[3] = 0; i[4] = 2; i[5] = 3;
// Fill in the back face index data
i[6] = 4; i[7] = 5; i[8] = 6;
i[9] = 4; i[10] = 6; i[11] = 7;
// Fill in the top face index data
i[12] = 8; i[13] = 9; i[14] = 10;
i[15] = 8; i[16] = 10; i[17] = 11;
// Fill in the bottom face index data
i[18] = 12; i[19] = 13; i[20] = 14;
i[21] = 12; i[22] = 14; i[23] = 15;
// Fill in the left face index data
i[24] = 16; i[25] = 17; i[26] = 18;
i[27] = 16; i[28] = 18; i[29] = 19;
// Fill in the right face index data
i[30] = 20; i[31] = 21; i[32] = 22;
i[33] = 20; i[34] = 22; i[35] = 23;
meshData.indices.assign(&i[0], &i[36]);
}가령 이렇게 상자를 만들때, vertex 의 정로보 마지막에 0.f 1.f 등을 넣어주는데 이것이 uv의 값이다.
struct Vertex
{
Vertex() : position(0, 0, 0), normal(0, 0, 0), tangentU(0, 0, 0), texC(0, 0) {}
Vertex(const XMFLOAT3& p, const XMFLOAT3& n, const XMFLOAT3& t, const XMFLOAT2& uv)
: position(p), normal(n), tangentU(t), texC(uv){}
Vertex(
float px, float py, float pz,
float nx, float ny, float nz,
float tx, float ty, float tz,
float u, float v)
: position(px,py,pz), normal(nx,ny,nz),
tangentU(tx, ty, tz), texC(u,v){}
XMFLOAT3 position;
XMFLOAT3 normal;
XMFLOAT3 tangentU;
XMFLOAT2 texC;
};texC로 표현되어 있다.
텍스처의 비율을 나타내 입히는 것이다.
if (gUseTexure)
{
// Sample texture.
texColor = gDiffuseMap.Sample(samAnisotropic, pin.Tex);
}쉐이더에서 이제 가지고 있는 텍스처를 샘플링해서 입혀줘 색상을 나타내게된다.
